Meteorix
1000×1000 mm outdoor cabinet platform for powerful large-format deployment.
- 📏1000×1000 mm cabinet format
- 🎯Outdoor large-format positioning
- 🏢Built for public media scale
- 📺Suitable for billboard and facade use
- 🏗️Efficient cabinet architecture
- 🚀Commercial outdoor deployment
Advanced Design & Engineering
Robust Design
Weighs 27kg per cabinet with a thickness of 92mm; durable, reinforced against deformation.
Robust PCB
Stronger overload capacity with thicker and larger PCB boards.
Smart Connectivity
Adjustable connectors ensure stability and reliability; HUB design eliminates ribbon cables for a tidy interior.
Superior Protection
IP66 Protection
IP66-rated with automotive-grade waterproof rings for maximum weather resistance.
Extreme Temperature Range
Operates from -20℃ to 60℃, resistant to humidity, temperature, and salt spray conditions.
Innovation & Smart Control
Innovative Splicing
Seamless splicing for perfect 3D effects; supports custom displays with right angles and rounded corners, enabling immersive 3D experiences.
Wire Protection
Concealed wire routing to prevent exposure-related aging and ensure long-term reliability.
Intelligent Brightness Control
Automatic and manual adjustments based on ambient light for optimal visibility in all conditions.
Technical Specifications
Display Specifications
| LED Type | DSBJ/Kinglight 1921 common cathode |
| Pixel Pitch | 4.44 mm |
| Module Resolution (W×H Pixel) | 108×72 |
| Module Dimension (mm) | 480 (W)×320 (H) |
| Density | 50,625/m² |
| Servicing | Front/Rear |
| Cabinet Material | Aluminum Extrusion |
| Back Shell | Aluminum |
| Cabinet Size (W×H×D) | 960mm×960mm×85mm |
| IP Rating | IP65 |
| Operating Temperature | -20℃ to 60℃ |
| Weight per Cabinet | 27kg |
| Cabinet Thickness | 92mm |
Applications & Environments

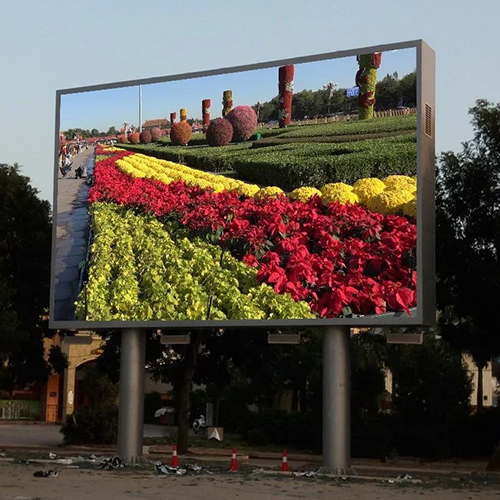

Large Billboards
Highway and urban advertising displays

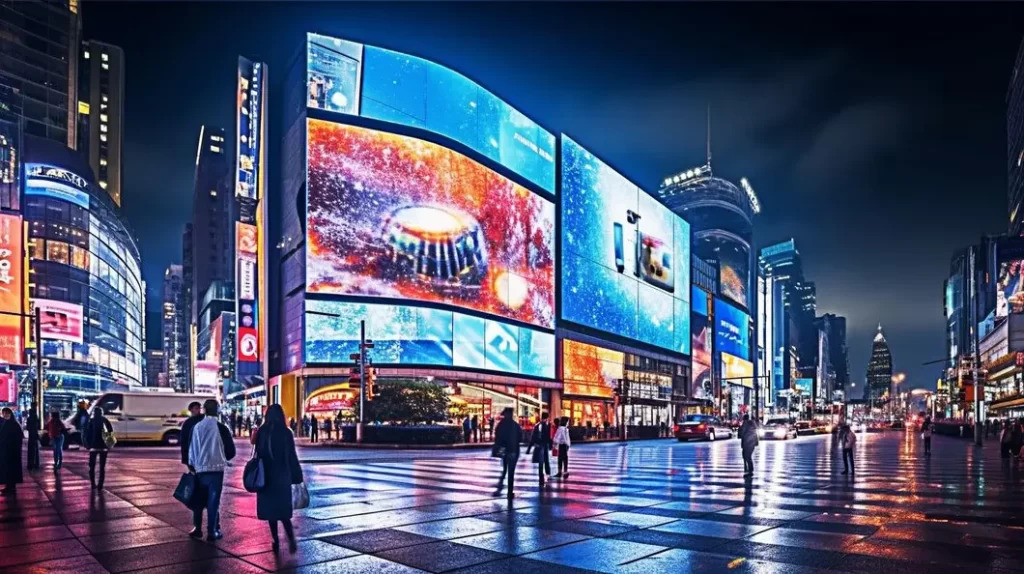

Building Facades
Architectural media installations
Roadside Digital Media
Traffic and commercial signage

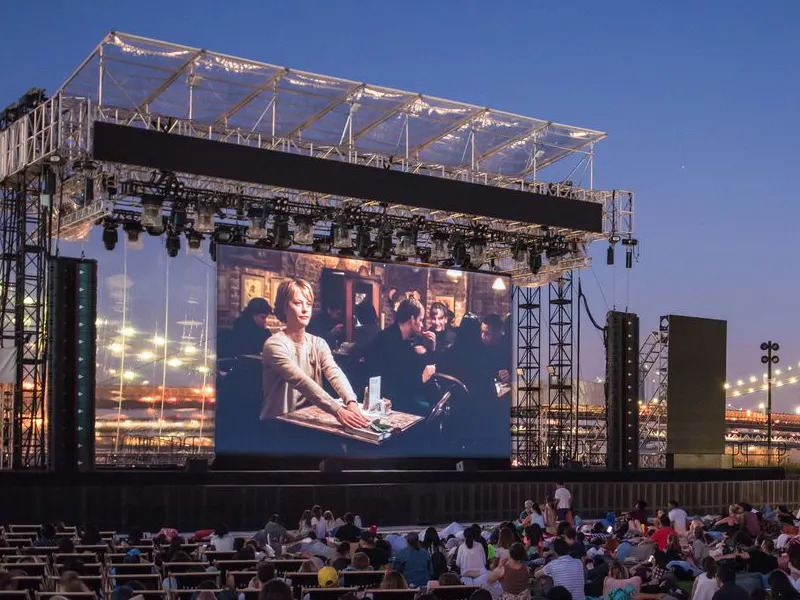

Public Venues
Stadiums and entertainment centers
Outdoor Networks
Digital signage networks
Commercial Displays
Large-format outdoor advertising
