Transparent
Filmix
Transparent LED film for lighter-weight, lower-visual-mass glass integration.
- 🎬Transparent LED film approach
- 🪶Lighter visual footprint
- 🪟Designed for glass integration
- 🎨Elegant design-led application
- 📚Suitable for subtle media storytelling
- 🏗️Premium architectural positioning
TechnologyTransparent LED film
FormatGlass-integrated
Use CaseRetail windows
Lightweight Design
At just 2mm thick and 0.34kg/m², Filmix is incredibly lightweight, making installation a breeze.
- ✓Only 2mm thick profile
- ✓0.34kg/m² weight
- ✓Easy installation process
- ✓Minimal structural requirements
High Brightness & Contrast
Delivering a brightness of 5000 cd/m² and a contrast ratio of 9000:1, Filmix provides stunning, high-definition visuals.
- ✓5000 cd/m² brightness level
- ✓9000:1 contrast ratio
- ✓Stunning high-definition visuals
- ✓Exceptional image quality
Energy Efficiency
Designed to consume minimal power while delivering maximum performance.
- ✓Minimal power consumption
- ✓Maximum performance delivery
- ✓Eco-friendly operation
- ✓Cost-effective energy usage
Technical Specifications
Display Specifications
| MODEL | P3.91-1024 | P3.91-1200 | P3.91-1500 | P6.25-1025 | P6.25-1200 | P6.25-1500 |
|---|---|---|---|---|---|---|
| Pixel Pitch (H/V.mm) | H:3.91/V:3.91 | H:3.91/V:3.91 | H:3.91/V:3.91 | H:6.25/V:6.25 | H:6.25/V:6.25 | H:6.25/V:6.25 |
| Density | 65536 dot/m² | 65536 dot/m² | 65536 dot/m² | 25600 dot/m² | 25600 dot/m² | 25600 dot/m² |
| Transparency | >80% | >80% | >80% | >80% | >90% | >90% |
| Module Size | 1025mmx250mm | 1200mmx250mm | 1500mmx250mm | 1025mmx250mm | 1200mmx250mm | 1500mmx250mm |
| Cabinet Size | 1045mmx250mmx72mm | 1220mmx250mmx72mm | 1520mmx250mmx72mm | 1045mmx250mmx72mm | 1220mmx250mmx72mm | 1520mmx250mmx72mm |
| LED | 2121 | 2121 | 2121 | 2121 | 2121 | 2121 |
| Weight | 1.04kg | 1.11kg | 1.21kg | 1.07kg | 1.11kg | 1.21kg |
| Resolution | 256x64 | 300x64 | 376x64 | 160x40 | 188x40 | 232x40 |
| Brightness | 3500cd/m² | 3000cd/m² | 2500cd/m² | 5000cd/m² | 4500cd/m² | 3000cd/m² |
| Viewing Angle (H/V,°) | 160/140 | 160/140 | 160/140 | 160/140 | 160/140 | 160/140 |
| Lifespan | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs |
| Color Depth | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) |
| Color Temperature | 5500K – 15000K | 5500K – 15000K | 5500K – 15000K | 5500K – 15000K | 5500K – 15000K | 5500K – 15000K |
| Max Power Consumption | 1200 w/m² | 1200 w/m² | 1200 w/m² | 1200 w/m² | 1200 w/m² | 1200 w/m² |
| Avg. Power Consumption | 450 w/m² | 450 w/m² | 450 w/m² | 450 w/m² | 450 w/m² | 450 w/m² |
| Power Supply | 200V-240V±10% | 200V-240V±10% | 200V-240V±10% | 200V-240V±10% | 200V-240V±10% | 200V-240V±10% |
| Operating Temp. | 0℃ to +60℃ | 0℃ to +60℃ | 0℃ to +60℃ | 0℃ to +60℃ | 0℃ to +60℃ | 0℃ to +60℃ |
| Storage Temp. | -20℃ to +65℃ | -20℃ to +65℃ | -20℃ to +65℃ | -20℃ to +65℃ | -20℃ to +65℃ | -20℃ to +65℃ |
| Operating Humidity | 20%RH – 85%RH | 20%RH – 85%RH | 20%RH – 85%RH | 20%RH – 85%RH | 20%RH – 85%RH | 20%RH – 85%RH |
Applications & Environments

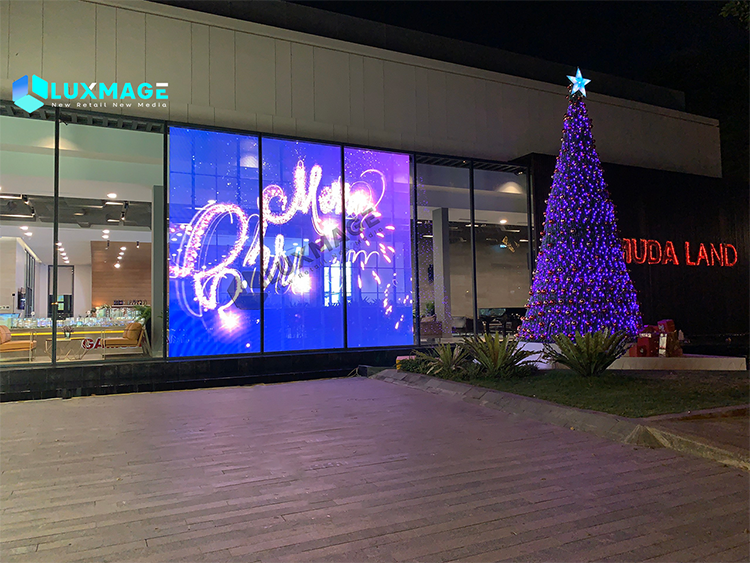

Retail Windows
Transparent displays for storefronts
Glass Branding
Corporate identity integration
Showrooms
Product presentation spaces
Architectural Media
Building facade integration
Luxury Spaces
Premium commercial environments
Design Studios
Creative workspace displays
