Muvix
Ultra-thin indoor rental display system with 0.9mm pixel pitch and wireless ClickShare technology. Created for fast setup, stunning visuals, and polished event presentations with premium performance.
- 📱Ultra-thin 27.2mm cabinet depth
- 📡Wireless ClickShare connectivity
- 🎨0.9mm pixel pitch stunning visuals
- ⚡≥3,840Hz refresh rate performance

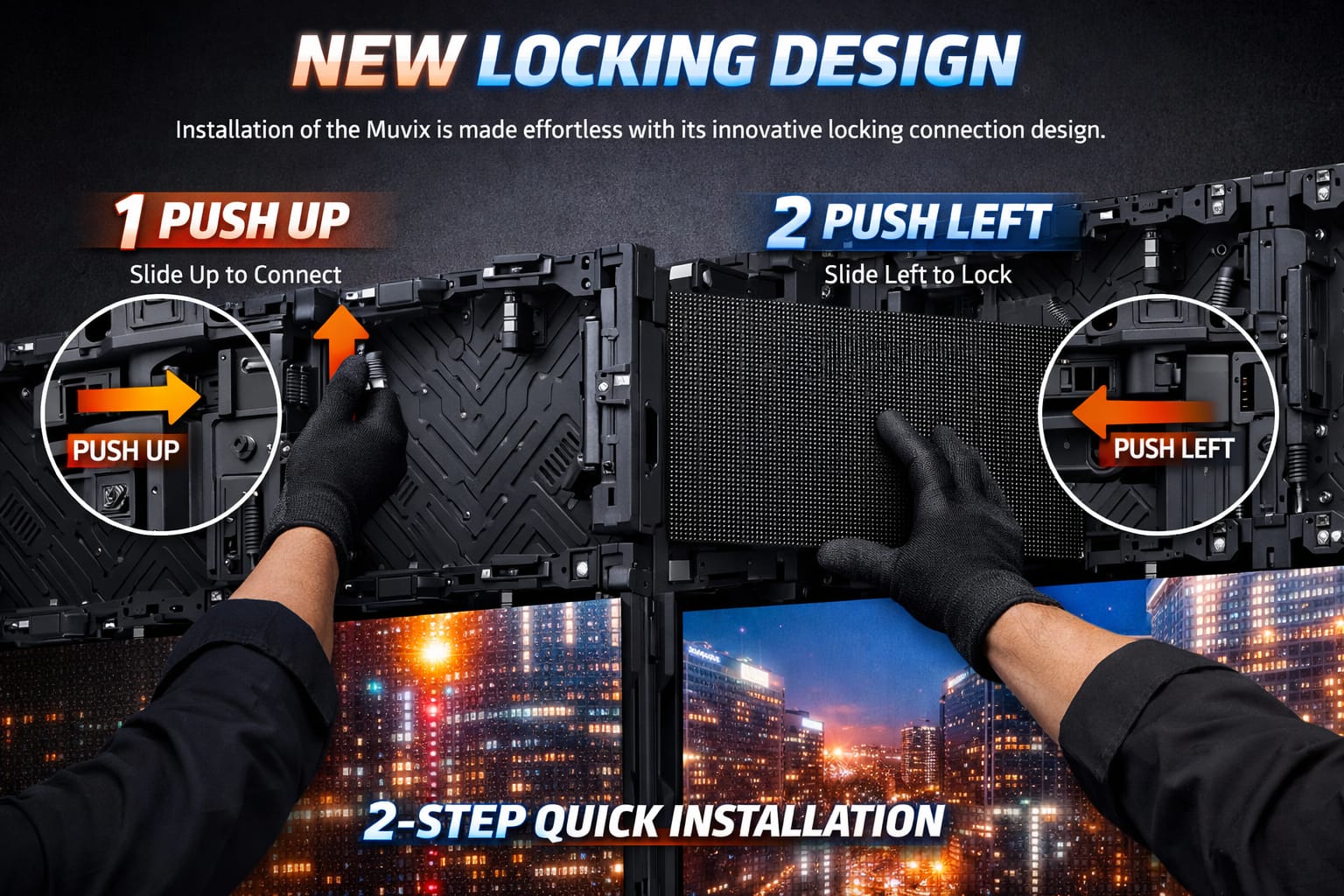

- 🔧Fast assembly and teardown design
- 🎭Stage-ready presentation quality
Ultra Design
Ultra Thin And Light
Muvix is the Munorix indoor rental series for event production, stage backdrops, and temporary visual installations. It prioritizes modular speed, repeated setup cycles, and a presentation quality suited to premium live environments with ultra-thin 27.2mm cabinet depth.
Indoor Rental Architecture
Fast assembly and teardown for repeated deployment

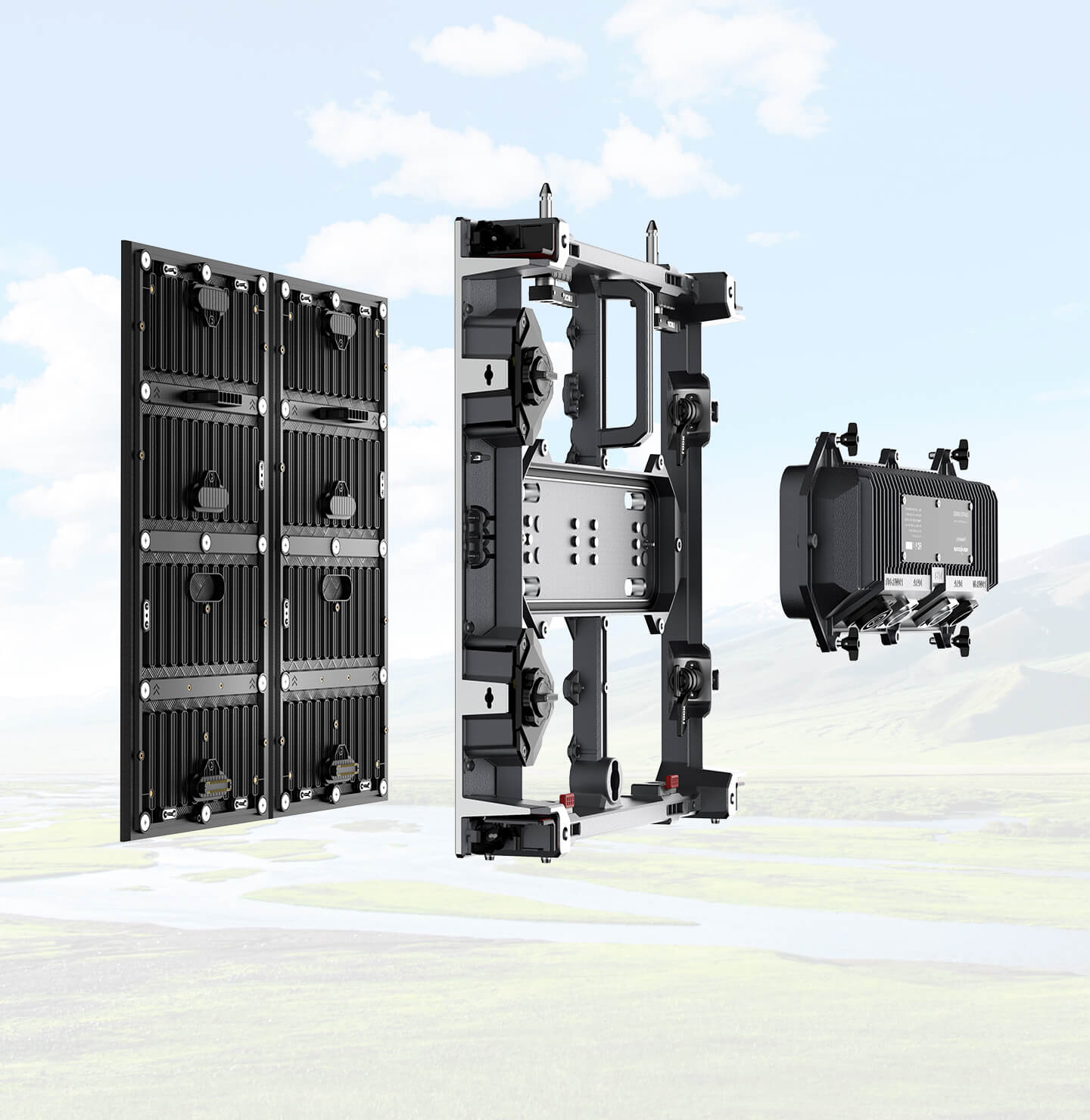

Portable Modular Structure
11kg lightweight design for easy transportation
Stage-Ready Presentation
Premium quality suited for live environments
Smart Connectivity
Wireless ClickShare
Advanced wireless ClickShare technology enables seamless content sharing and presentation control. Perfect for events and exhibitions, corporate launches, concert backdrops, stage productions, and conference environments where multiple presenters need quick connectivity.
Events and Exhibitions
Trade shows and corporate displays
Corporate Launches
Product presentations and announcements
Concert Backdrops
Stage productions and live performances
Premium Quality
Stunning Visuals
Experience exceptional visual quality with 0.9mm pixel pitch and SMD 4-in-1 common cathode technology. Built for temporary indoor events with modular quick-build structure and repeated setup/teardown cycles for maximum portability.
📋 Muvix Technical Datasheet
Display Specifications
| Pixel Pitch | 0.9 mm |
| LED Type | SMD 4-in-1 common cathode |
| Pixel Density (m²) | 1,137,777 pixel/m² |
| Pixel Density (Cabinet) | 589,824 pixels/cabinet |
| Resolution of LED Module (W×H) | 256×288 pixels |
| Resolution of Cabinet (W×H) | 1024×576 pixels |
Physical Dimensions
| LED Module Size (W×H) | 240×270 mm |
| Cabinet Size (W×H×D) | 960×540×27.2mm |
| No. of Modules Per Cabinet (W×H) | 8×3 |
| Cabinet Area | 0.5184 m² |
| Aspect Ratio | 16:9 |
| Weight (per cabinet) | 11 kg |
Optical Parameters
| Brightness (Adjustable) | 500-1000 nit |
| Contrast Ratio | 7,000:1 |
| Horizontal Viewing Angle | ≥160° |
| Vertical Viewing Angle | ≥160° |
| Scan Rate | 48 |
| Colour Temperature (Adjustable) | 3200~9300 K |
Electrical & Processing
| Average Power Consumption | ≤150 W/m² |
| Max Power Consumption | ≤650 W/m² |
| Input Power Voltage | AC 100-240V, 50/60 Hz |
| Drive Mode | Constant Current Drive |
| Frame Rate | 30-120 Hz |
| Refresh Rate | ≥3840 Hz |
Environmental & Service
| Operating Temp/Humidity | -10 – 45°C/10% – 90% RH |
| Storage Temp/Humidity | -20 – 60°C/10% – 90% RH |
| IP Rating | IP5X |
| Life Span (typical) | 100,000 Hrs |
| Servicing | Front access |
| Grey Scale Processing | 14-18 bit |
Construction Materials
| Cabinet Material | Die-casting Aluminium/Aluminium-magnesium alloy |
| Cabinet Depth | Ultra-thin 27.2mm |
| Weight Efficiency | Lightweight 11kg per cabinet |
| Portability | Optimized for rental applications |
| Durability | Premium die-cast construction |
| Maintenance | Front service access design |
Rental Applications & Events
Corporate Events
Product launches & presentations
Conferences
Professional meeting environments
Exhibitions
Trade shows & display booths
Stage Productions
Concert backdrops & performances
Retail Events
Pop-up stores & promotional displays
Broadcast Studios
TV production & live streaming
