Transparent
Visix
Transparent LED screen for glass-facing installations and visually open architecture.
- 🏗️Transparent LED screen architecture
- 🪟Glass-facing display use
- 👁️Maintains visual openness
- 🏛️Premium architectural application
- 🏢Designed for modern facades and show windows
- ⚖️Balances media and transparency
TechnologyTransparent LED screen
FormatGlass / architectural
Use CaseStorefront glass

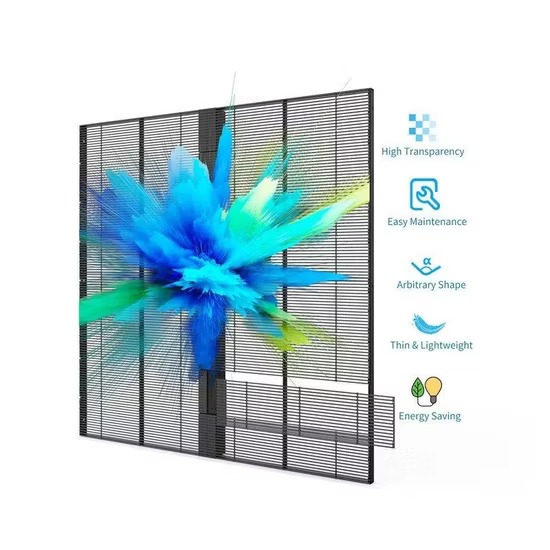

Unmatched Transparency
With over 90% transparency, Visix ensures clear visibility without obstructing light or line of sight.
- ✓Over 90% transparency rate
- ✓Clear visibility maintained
- ✓No obstruction of light
- ✓Preserves line of sight

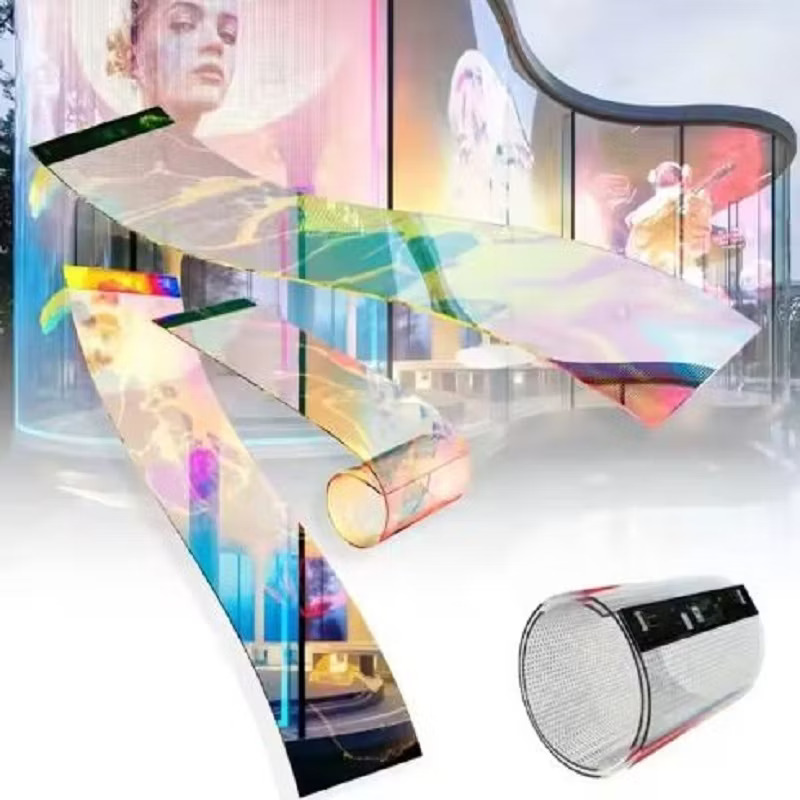

Flexible & Adaptable
Our screens can be bent and shaped to fit various surfaces and designs, offering limitless creative possibilities.
- ✓Bendable and shapeable design
- ✓Fits various surfaces
- ✓Limitless creative possibilities
- ✓Adaptable to any architecture
Lightweight Design
At just 2mm thick and 0.34kg/m², Visix is incredibly lightweight, making installation a breeze.
- ✓Only 2mm thick profile
- ✓0.34kg/m² weight
- ✓Easy installation process
- ✓Minimal structural requirements
Technical Specifications
Display Specifications
| MODEL | P3.91-1024 | P3.91-1200 | P3.91-1500 | P6.25-1025 | P6.25-1200 | P6.25-1500 |
|---|---|---|---|---|---|---|
| Pixel Pitch (H/V.mm) | H:3.91/V:3.91 | H:3.91/V:3.91 | H:3.91/V:3.91 | H:6.25/V:6.25 | H:6.25/V:6.25 | H:6.25/V:6.25 |
| Density | 65536 dot/m² | 65536 dot/m² | 65536 dot/m² | 25600 dot/m² | 25600 dot/m² | 25600 dot/m² |
| Transparency | >80% | >80% | >80% | >80% | >90% | >90% |
| Module Size | 1025mmx250mm | 1200mmx250mm | 1500mmx250mm | 1025mmx250mm | 1200mmx250mm | 1500mmx250mm |
| Cabinet Size | 1045mmx250mmx72mm | 1220mmx250mmx72mm | 1520mmx250mmx72mm | 1045mmx250mmx72mm | 1220mmx250mmx72mm | 1520mmx250mmx72mm |
| LED | 2121 | 2121 | 2121 | 2121 | 2121 | 2121 |
| Weight | 1.04kg | 1.11kg | 1.21kg | 1.07kg | 1.11kg | 1.21kg |
| Resolution | 256x64 | 300x64 | 376x64 | 160x40 | 188x40 | 232x40 |
| Brightness | 3500cd/m² | 3000cd/m² | 2500cd/m² | 5000cd/m² | 4500cd/m² | 3000cd/m² |
| Viewing Angle (H/V,°) | 160/140 | 160/140 | 160/140 | 160/140 | 160/140 | 160/140 |
| Lifespan | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs |
| Color Depth | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) |
| Color Temperature | 5500K – 15000K | 5500K – 15000K | 5500K – 15000K | 5500K – 15000K | 5500K – 15000K | 5500K – 15000K |
| Max Power Consumption | 1200 w/m² | 1200 w/m² | 1200 w/m² | 1200 w/m² | 1200 w/m² | 1200 w/m² |
| Avg. Power Consumption | 450 w/m² | 450 w/m² | 450 w/m² | 450 w/m² | 450 w/m² | 450 w/m² |
| Power Supply | 200V-240V±10% | 200V-240V±10% | 200V-240V±10% | 200V-240V±10% | 200V-240V±10% | 200V-240V±10% |
| Operating Temp. | 0℃ to +60℃ | 0℃ to +60℃ | 0℃ to +60℃ | 0℃ to +60℃ | 0℃ to +60℃ | 0℃ to +60℃ |
| Storage Temp. | -20℃ to +65℃ | -20℃ to +65℃ | -20℃ to +65℃ | -20℃ to +65℃ | -20℃ to +65℃ | -20℃ to +65℃ |
| Operating Humidity | 20%RH – 85%RH | 20%RH – 85%RH | 20%RH – 85%RH | 20%RH – 85%RH | 20%RH – 85%RH | 20%RH – 85%RH |
Applications & Environments

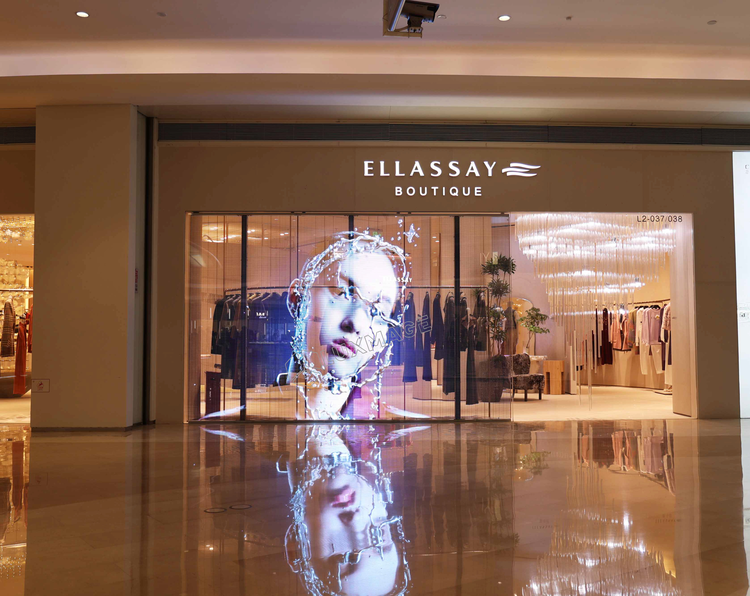

Storefront Glass
Transparent displays for retail windows
Show Windows
Interactive window displays
Building Facades
Architectural media integration
Retail Architecture
Modern commercial spaces
Commercial Spaces
Office and corporate environments
Modern Offices
Professional workspace displays
