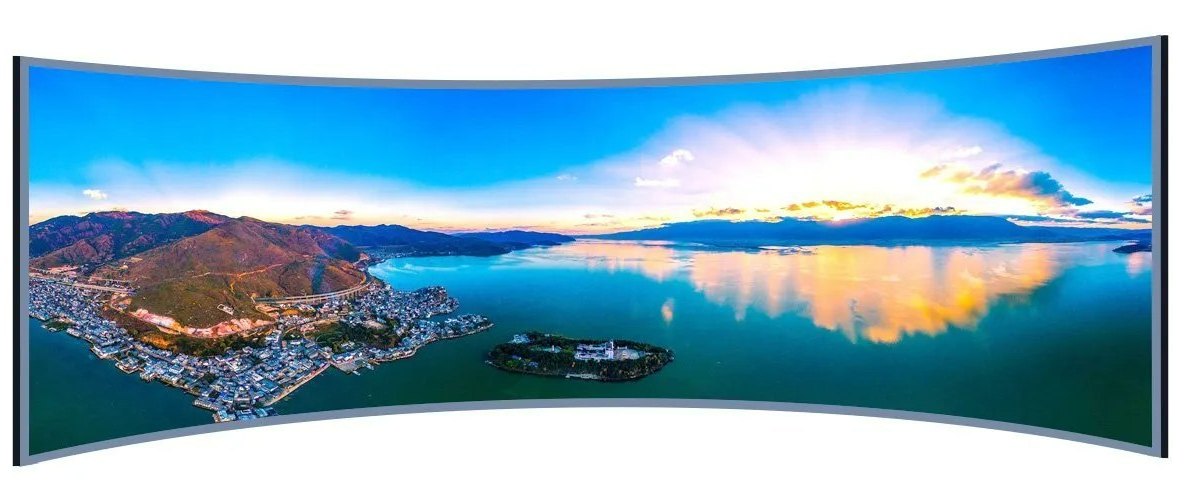

Prismix
Flip-chip COB cabinet for premium fine-pitch indoor visual performance. Features energy efficiency, compact design, and precision in every pixel with Full Flip Chip COB technology.
- ⚡Energy efficient with enhanced heat dissipation
- 📱Compact 33.6mm cabinet depth design
- 🔬Fine/micro pitch precision (P1.0mm or less)
- 🛠️Easy maintenance with direct cleaning
- 🏗️Lightweight 4.7kg per cabinet
- 💎Full Flip Chip COB technology
Energy Efficiency
Ultra Thin And Light
Efficiency is a hallmark of the Prismix. By increasing the area where the electrodes are directly connected to the substrate, the series significantly improves heat dissipation, which not only enhances performance but also reduces power consumption.
Enhanced Heat Dissipation
Improved thermal management reduces energy consumption and extends display life
Energy Efficient
Lower power usage without sacrificing performance, making it eco-friendly and cost-effective
Easy Maintenance
The screen's surface is easy to clean, ensuring pristine display at all times
"Efficiency meets simplicity—keeping your display cool, clean, and cost-effective."
Compact Design
Compact & Lightweight Design
The Prismix is as practical as it is powerful. With a slim cabinet depth of just 33.6mm and a lightweight design (4.7kg per cabinet), this series is easy to handle, install, and integrate into any environment.
Control Rooms
Premium indoor visual systems with clarity and durability
Boardrooms
Executive spaces requiring fine-pitch presentation
Broadcast Studios
Professional environments with visual precision
Executive Spaces
Modern cabinet format for sleek architecture
Premium Indoor Signage
Professional indoor spaces with visual refinement
"Big on performance, light on weight—Prismix makes installation a breeze."
Precision Technology
Stunning Visuals
The Prismix is designed to excel in fine-pitch applications, particularly in displays with a pitch of P1.0mm or less. This capability allows for smaller LED chips, which enhances image resolution and quality.
📋 Prismix Technical Datasheet
Product Series Comparison
| Product Series | Prismix SMD | Prismix COB | Prismix MIP |
| Pixel Pitch (mm) | 1.25, 1.56 | 0.625-1.56 | 0.9375 |
| Packaging Process | TOP 1010/1212 | Full flip-chip COB | MIP 0303 |
| Cabinet Resolution | 480×270, 384×216 | 960×540-384×216 | 768×432 |
| Cabinet Size (mm) | 600×337.5×32.1-37.4 |
| Cabinet Weight (kg) | 4.1-4.2±0.5 |
Physical Specifications
| Cabinet Area | 0.2025 m² |
| Flatness | ≤0.15-0.2 mm |
| Maintenance | Front Access |
| IP Rating | IP5X |
| Cabinet Material | Die-casting Aluminium |
| Protection Technology | SMD/COB/Primer+Film |
Optical Parameters
| Brightness (nits) | 500-600 |
| Color Temperature (K) | 2000-10000 |
| Viewing Angle (H/V) | 160°-170° |
| Contrast Ratio | 5000:1-12000:1 |
| Frame Rate (Hz) | 30-60 |
| Refresh Rate (Hz) | 3840-7680 |
Power & Environmental
| Power (W/m²) Max/Ave | ≤255-410 / ≤85-130 |
| Operating Temp (℃) | -10℃~45℃ |
| Storage Temp (℃) | -20℃~55℃ |
| Operating Humidity | 10%—85% RH |
| Storage Humidity | 15%—80% RH |
| Colour Depth (bits) | 13-16 |
Professional Applications & Environments
Control Rooms
Mission-critical monitoring & operations
Boardrooms
Executive meeting & presentation spaces
Broadcast Studios
Professional media production
Executive Spaces
Premium corporate environments
Premium Signage
High-end indoor digital displays
Luxury Retail
Fine-pitch retail applications
